Our Standard Turn-Up Tool will save installers of metal roofing time associated with properly field-bending the high side of the metal panel to provide added protection from moisture getting behind the closures. We have a tool to fit most common panels including R-Panel and other 3' and 2' wide panels.

The Heavy Duty Turn-Up/Down Tool saves you and your customers time and headaches associated with properly field-bending the high and low sides of Klip-Rib/Clip-Loc style panels. Whether you want to turn down the low sides or close the high sides, JS Design has the right tool for your application. When used in conjunction with the Notching Tool, the need for closures is eliminated.

Our tool puts an end to:
• Leaky gaps
• Expensive closures
• Labor cutting z-closures
• Low quality tools



Note: Custom tools available on request. Please inquire.

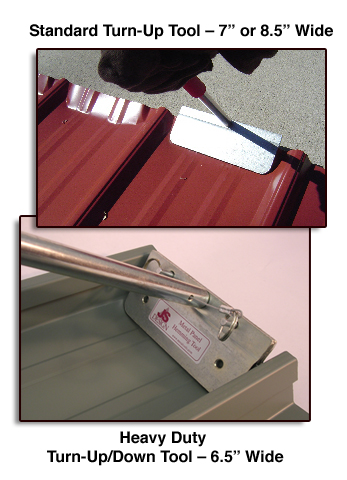

6.5" Heavy Duty
Turn-Up/Down Tool
- 1/8" Gap
- 2" Turn-Up Depth
- 7/8" Turn-Down Depth
- Zinc-Chromate Plated
- Rubber Grip Handle
- Tapered Side Reliefs

 Drawing to come


7" Standard Turn-Up Tool
- 3/16" Gap
- 1-3/4" Turn-Up Depth

- Zinc-Chromate Plated
- Rubber Grip Handle




8.5" Standard Turn-Up Tool
- 3/16" Gap
- 1-3/4" Turn-Up Depth

- Zinc-Chromate Plated
- Rubber Grip Handle




812.248.4788
13125 Deer Lake Drive • Memphis, Indiana 47143 • 812.248.4788/Fax



Made in USA
